Medium Frequency Induction Furnace High Efficiency Metal Melting / Industrial Smelter for Steel

  • Medium Frequency Induction Furnace High Efficiency Metal Melting / Industrial Smelter for Steel
Luogo di origine Cina
Marca Shaanxi Chengda
Certificazione ISO 9001
Numero di modello Negoziare in base alla capacità di elaborazione delle apparecchiature
Quantità di ordine minimo 1 unità
Prezzo The price will be negotiated based on the technical requirements and supply scope of Party A
Imballaggi particolari Discutere in base ai requisiti specifici della Parte A
Tempi di consegna 2 mesi
Termini di pagamento L/C,T/T,Western Union
Capacità di alimentazione Completare la catena di fornitura di produzione, fornire in tempo e soddisfare gli standard di quali
Dettagli
Evidenziare

medium frequency induction furnace

,

high efficiency metal melting furnace

,

industrial steel smelting furnace
Lasciate un messaggio
Descrizione di prodotto

Key attributes


type
Arc Furnace
voltage
10KVA, 440 V, 380 V
usage
Melting Furnace
key selling points
Energy Saving, Easy To Operate, High Safety Level
warranty
1 Year
core components
PLC, Pump
machinery test report
Provided
video outgoing-inspection
Provided
place of origin
Shaanxi, China
weight (t)
10
brand name
HAN
dimension(l*w*h)
Customization Size
Working Temperature(℃)
2000°C
Capacity (kg/h)
500 kg/h, 800 kg/h
Material
Stainless Steel
Keyword
Induction Furnace
Heat Source
Electric Arc
Melting Material
Scrap Steel
Final product
Ferrosilicon Ferromanganese Ferrochrome
Feature
Energy Saving
Application
Smelt Ferros Metal
Capacity
20ton
Product Name
Medium Frequency Induction Melting Furnace
Temperature control
Automatic

Packaging and delivery

Selling Units
Single item

Customization options

core components (Min. order: 1 set)
Name plate (Min. order: 1 set)
Logo/graphic design (Min. order: 1 set)
Material (Min. order: 1 set)

Environment and Condition Usage of Medium Frequency Induction Melting Furnace.
1. The temperature should be at 2℃ to 35℃.
2. The relative humidity no more than 90%.
3. Installation height no more than 1000m.
4. No conductive dust and corrosive gas in working place.
5. No explosion and violent vibration room around the place.
6. The temperature of the cooling water should no less than 10℃, not more than 30℃, hardness<8 degrees, Phpressure=”>0.2Mpa.
7. The power supply must be at 50Hz, three phases, 380V, Voltage fluctuation 370-410Volts.

The smelting furnace made by our company,also called coreless induction furnace,is widely used to smelt Ferros metal such as steel,steel alloy,and iron ,nonferrous metal such as stainless steel,copper,molybdenum,and zinc and keep temperature after smelting.

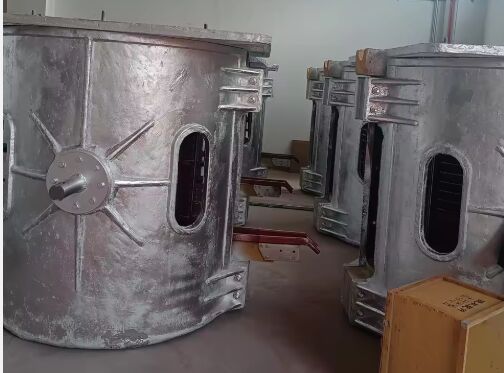

Medium Frequency Induction Furnace High Efficiency Metal Melting / Industrial Smelter for Steel 0

Specification
Components
Detailed description
Furnace Body
Furnace structure has four types, aluminum reduction tilting furnace, aluminum hydraulicking furnace, magnetic shielding steel furnace and hydraulic steel furnace reduction tilting furnaces equip with reduction machine, hydraulic tilting furnaces equipped with hydraulic pump and work station. The whole sets generally have two furnaces using for melting and maintenance.Induction coil installs in the center of the furnace, it has a spiral body with the rectangular empty brass circle around, the pipe center should
be cooled with water. Copper bar outside the induction coil will connect with the water-cooling cable. The lining closest to the induction coil, which made by the burden, the method you can find in related parts below.
Tilting Controller
The controller is a control box for tilting furnace. The switch on the controller can choose furnaces and the button can move around through the rubber soft line, and also control the furnace for tilting and be resetting(this part should be installed by users themselves)
Water-cooled cable
Water cooled cable is made of soft copper wire, hose, cable end, through them to connect with capacitor and furnace.
Capacitors
Capacitors compose of electric heat, holder, the converge-wires. it supplies power.
Medium Frequency power cabinet
Medium frequency power cabinet will transmute three-phase AC power frequency into medium AC power.
Water-cooling plant (Prepared by the user)
Water cooling plant includes water inlet and outlet water tank, it supplies for an induction coil. water-cooled electric cable and cooling water in the capacitor can be divided into five ways, usually using only three ways(once melting furnace doesn't work the water in the induction coils and cooling cable can be close down through the valve).
Our Services
1. Customize according to your requirements and provide you with an effective quotation.
2. We have professional engineers to design the plan for you.
3. Our team will provide professional advice and help for your whole project.
4. Our factory is always ready to welcome field visits.
5. Ensure high quality after-sales service.
FAQ
Q1: Are you trading company or manufacturer? A: We are manufacturer. Q2: How long is your delivery time? A: Generally it is 60 days, it is according to quantity requires.
Q3: What is the term of payment? A: Payment <=1000USD,100%in advance. Payment>=1000USD,30% T/T in advance, balance before shipment.

lf you are interested in this equipment, please don't hesitate to contact us!
lf the machine is not suitable for your plant, please e-mail us the following information:
1. What's the quality standard of billet do you want to casting? ls it common carbon steel or low carbon steel?
2. What's the billet size and length?
3. Do you have melting furnace? lf yes, how many tons of furnace with how many quantity?
4. What's the capacity per hour? According to your information, we will offer high efficiency design and best price for it.
